Battery Packs
8 × AA mignon rechargeable batteries
9.6V on-board voltage
Atmel ATmega88A
8 kByte flash
16 MHz
engine control
obstacle detection
Extension Port
I²C
UART
On-/Off-Switch
3 positions:
on - off - charge
Reset Button
ATmega128A restart
IR-Receiver
wavelength: 950 nm
modulation: 36kHz
IR-Transmission-LEDs
5 × OSRAM SFH485
infrared LEDs
wavelength: 880 nm
IR-Receiver-PT
5 × OSRAM SFH300FA
infrared-phototransistors
wavelength: 880 nm
Bright white LEDs
2 × 2250 mCd, 30°
LC-Graphicdisplay
optional
128×64 pixel, black
background lighting: green-yellow
Power Unit
2 × 1.5 W motors
with 25:1 transmission
Speaker
miniature-speaker
resonanze frequenzy: 2400 Hz
Motor-Status
2 × 2 LEDs
ISP-Interface
in-system-programming
Atmel standard 6-pole
Function Buttons
2 buttons, free programmable
Multicolour LEDs
8 × red / green
ATmega128
128 kByte flash
16 MHz
UART, I²C
53 I/O-pins
IR-Floor-Sensors
4 × CNY70
NIBO 2
Length: 136 mm
Width: 131 mm
Weight: 544 g




The robot kit NIBO 2 is a free programmable mobile robot. As an autonomous robot it is able to drive independently into any direction. By its multiple sensors NIBO 2 can avoid obstacles and follow lines on the floor. [➔Videos]

The kit was designed for young people to get technical knowledge. Particularly they can get experience in the fields robotics, microcontroller programming and measuring and control engineering. In order not to make life too much difficult for beginners the microcontrollers are ample dimensioned. Thus there is much space for programming.

The robot is controlled by two microcontrollers: an Atmel ATmega128 as main-controller and an Atmel ATmega88 as co-controller. The robot can be programmed with every usual Atmel programming adapter. In particular the programming adapter UCOM-IR2-X by nicai-systems is suitable for NIBO 2.



Optische Bauelemente
Optical Components
IR photoelectric barriers
IR sensors
Multicolour LEDs
Bright white LEDs

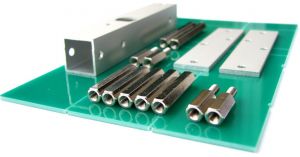

Metall Antriebssektion
Power Unit
Solid metal
engine-unit
IR-Lichtkegel
Distance Detection
Contact-free
IR-reflection-method

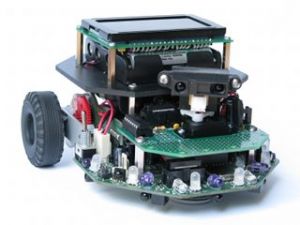

NIBO2 mit NDS3
Add-Ons
Interesting accessory kits
SHARP sensor
Precise distance determination
Optical orientation in space

Fun with assembling

The circuit boards are delivered with placed SMD (surface mounted devices) components, so that the customer only has to solder the THT (through hole technology) components. This allows persons with fundamental soldering knowledge to finish the boards.

The complex and time-critical modules motor-control and distance-measuring are completely implemented on the ATmega88 microcontroller. The firmware for this controller is provided by nicai-systems, it can easy be customized to the respective requirements of the user. Therefore the beginner does not need special knowledge in measuring and control engineering and there is no need to care about time-critical program sections.


Online Development Tool: Roboter.CC

The ↷ Open-Source platform Roboter.CC provides an online-compiler, ready-to-use program files for testing, online tutorials and a web-forum. It is quite easy to start with the programming of NIBO 2:

Roboter.CC


Needed for Operation:
  • Computer (32/64 bit) with Linux, Windows 7, Vista or XP
  • Programming device for Atmel AVR controller (e.g. UCOM-IR2)
  • 8 Mignon rechargeable batteries (AA)
