With the httpBox you can log analog and digital measuring signals. All measured data are immediately available from everywhere with a web browser. The httpBox is suitable for analog signals up to 100 kHz, logging with 10 bit, and also for analog long term signals, logging with 20 bit up to 25 Hz.

The httpBox plus is a version including 1024 MB flash storage. This version allows a standalone operating system as data logger.

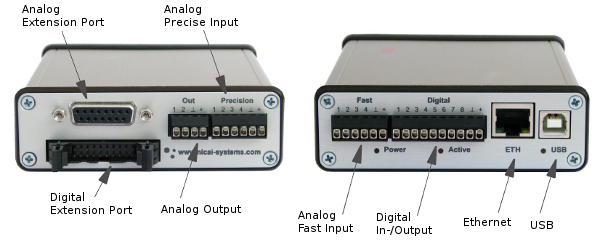

Connections / Interfaces:




Integrated http-Server:

  • Konfiguration and live access to all measured data with modern browsers
  • There is no software needed on the PC, just connect the box with the network
    and get access by PC, laptop, tablet, smartphone etc.


Further Informations:
